light + ventilation  |  trimless short

projects

coming soon !

details

finishes

aluminium  |  anodized  |  powdercoated

aluminium  |  wet - painted

custom brass  |  brunished

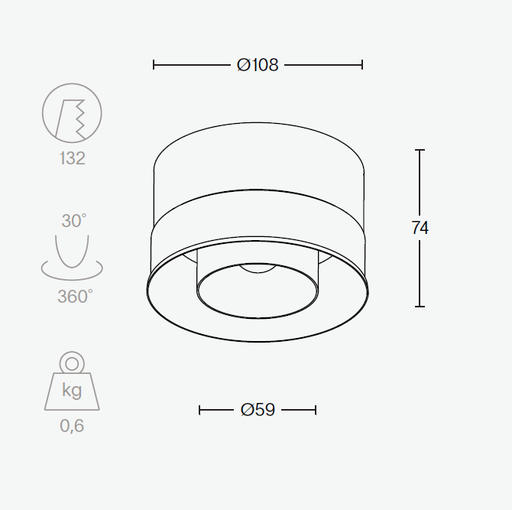

dimensions

data sheet

led

cob max. 8,5w  | 500ma |  805lm

light control

on -off  |  1 -10v  |  dali  |  dali deep

colour temperature

2700k  |  3000k

colour rendering index

cri 90+ | cri 97

beam angle

25°  |  40°  |  60°

protection

ip65  |  class III

photometrical data

on request

installation

lamp

ventilation system

flush mounting

plasterboard  12 mm

plastered  ceiling 12 - 33 mm

exposed concrete

wooden panel

cold stretch ceiling
