products

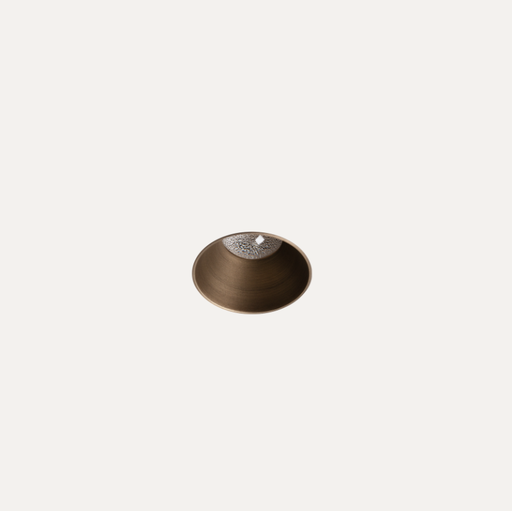

trimless spot  mini  long  |  Ø 38

projects

coming soon !

finishes

aluminium  | anodized + powdercoated

aluminium  |  wet-painted

custom brass  |  brunished

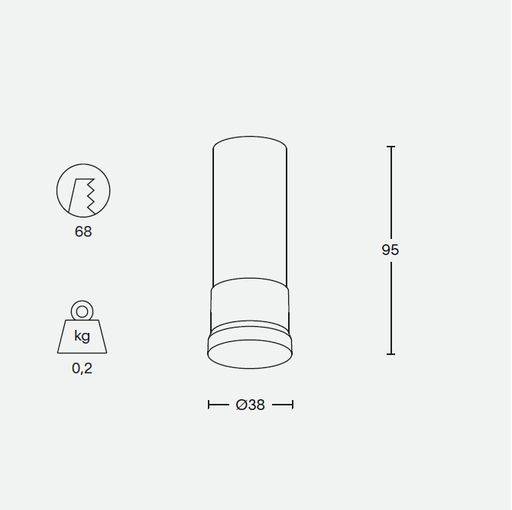

dimensions

data sheet

led

cob max. 8,5w  |  500ma |  750lm

light control

on -off  |  1 -10v  |  dali  |  dali deep

colour temperature

2700k  |  3000k

colour rendering index

cri90+  |  cri97

glass lens |   beam angle

20°  |  40°  |  60°

protection

ip44  |  class III

photometrical data

installation

flush mounting

plasterboard  12 mm

plastered ceiling  3,5  - 20 mm

plastered ceiling  12  -  33  mm

wooden installation

stretch ceiling installation
